NLS G5 Evolv DNA250C Enclosure BLACK
£23.99 Inc VAT / £19.99 Excl VAT
The perfect big 4s lipo DNA250C enclosure. Designed to work with our DNA-C actuator sets, mounting parts and Source M12 510 connector.
Please check carefully which 510 connector you are using as there are two enclosure available with different threads machined.
We suggest using the 2200mah 4s Turnigy Nano Tech lipo linked in the main description although other lipos may fit.
- Suitable for Evolv DNA250C ONLY
- This DNA250c enclosure is massive – 125mm x 60mm x 37mm
- 510 threaded for 30mm Source 510’s (Choice of M12 or M10 510 thread)
- It’s massive
- Threaded cutout for 12mm switch with M12x0.75mm thread. We recommend clontec switches
- It’s really massive
- Magnets will be fitted.
- Laser etching is available on request
- Expect a small lead time for magnet fitting
- If powder coating, please let us know and we wont fit magnets
To use this enclosure the way we intended, you’ll need our blanked dna250c acrylic board holder and a mounting kit, both of which come free with a board purchase.
Two versions of our NSL DNA250C Enclosure are available to suit 30mm 510’s either Source M12 510 or Source V3 M10 510
Use our DNA-C actuator sets for this build
Use a Clonetec 12mm switch
Many lipos will fit, but we’ve designed this enclosure with a 4s 2200mah Turnigy Nano-Tech 25-50C in mind which are available here

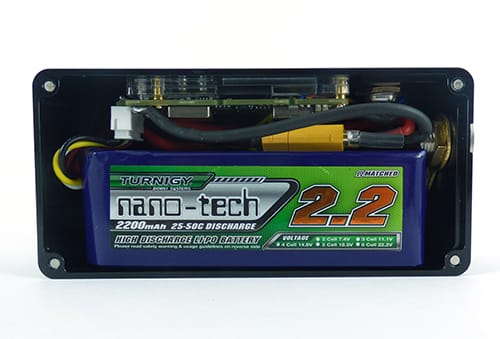

Heres an example of how to manage the cables. There’s space to use an XT60
IF you are powder coating please leave a message in the order comments and we will not fit magnets.
| Weight | 0.101 kg |
|---|---|
| Dimensions | 13 × 6 × 3 cm |
| 510 Thread Size | M12x1MM (Source M12), M10x1MM (Source M10) |
