NLS G3.5 DNA75/250
£21.81 Inc VAT / £18.33 Excl VAT
There are two versions of this enclosure. One that uses all actuators, and one that uses an off board 12mm fire button. Choose wisely
These enclosures have been reanodised and may have clamp marks on the inside of the parts
Notable changes for this revision are
- Threaded inset for 22mm 510 connector. M12x1 suitable for Source 510’s
- Thicker top wall to allow for thread and extra support for 510
- Threaded for 12mm clone tec fire switches
- Finer tolerance for magnet holes for better push fit.
IF you are powder coating please leave a message in the order comments and we will not fit magnets.

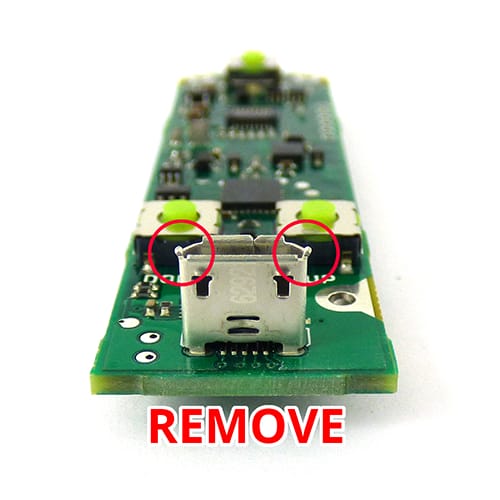

USB shield on DNA boards needs to be trimmed slightly
This listing is for an enclosure box and lid only with press fitted magnets.
Mounting kits are available HERE
Acrylic board holders with a blanked fire button HERE
Actuators are available HERE
12mm switches HERE
Please note, if ordering a DNA board from us the mounting kit and board holder are available as a free item
Black anodised enclosure and lid with milled DNA200 hole pattern.
Recessed 22mm 510
Use the blanked fire version of our dna holder / sled
Domed, raised, flush and recessed actuators sold separately. Vamo buttons/actuators are not suitable for this enclosure.
Suitable LiPo packs are Turnigy Nano 1300mAh 25/50C and Turnigy Aspec 1300mAh. Plenty of space for 1000mAh Turnigy Nanos too. No other cells have been tested for compatibility.
Sized for XT30 lipo connectors, you will need to change any pack with an XT60 to an XT30
Dual battery sleds ‘almost fit’ and may require the sides sanding slightly. IM2X18650 injection molded sleds fit with no modification
The m1.6 screw holes have a chamfer to suit the screws in our mounting kit with a 2.5mm head.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Box Type | 3 x Actuator / BLACK, 12mm Fire / BLACK |
