3pc Actuator Sets
£3.96 Inc VAT / £3.33 Excl VAT
The actuator sets were designed to be used with Evolv DNA 75, 200 and 250 boards but can be used for any application if you know the wall thickness of the enclosure being used.
Pleas see the full description for technical drawings and CAD files
These Actuator sets are sold as a pack of 3, one large and two small actuators.
Designed to be used with our mounting kit depending on the actuator type a wall thickness between 1.8 and 3.5mm
2 x 5.9mm diameter actuators
1 x 8.9m diameter actuator

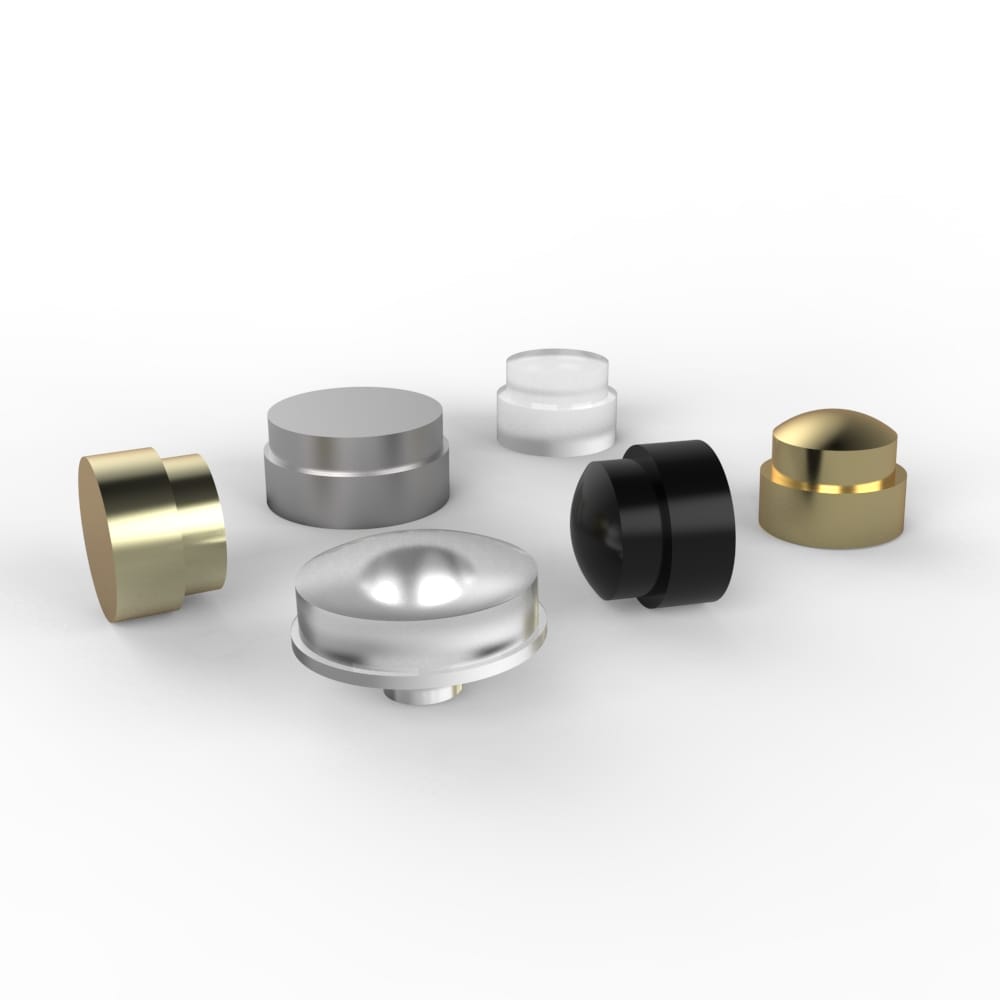

Available in a range of materials. Stainless steel, brass, acrylic, nylon
Drill a 6mm hole for the small actuators and a 9mm hole for the large.

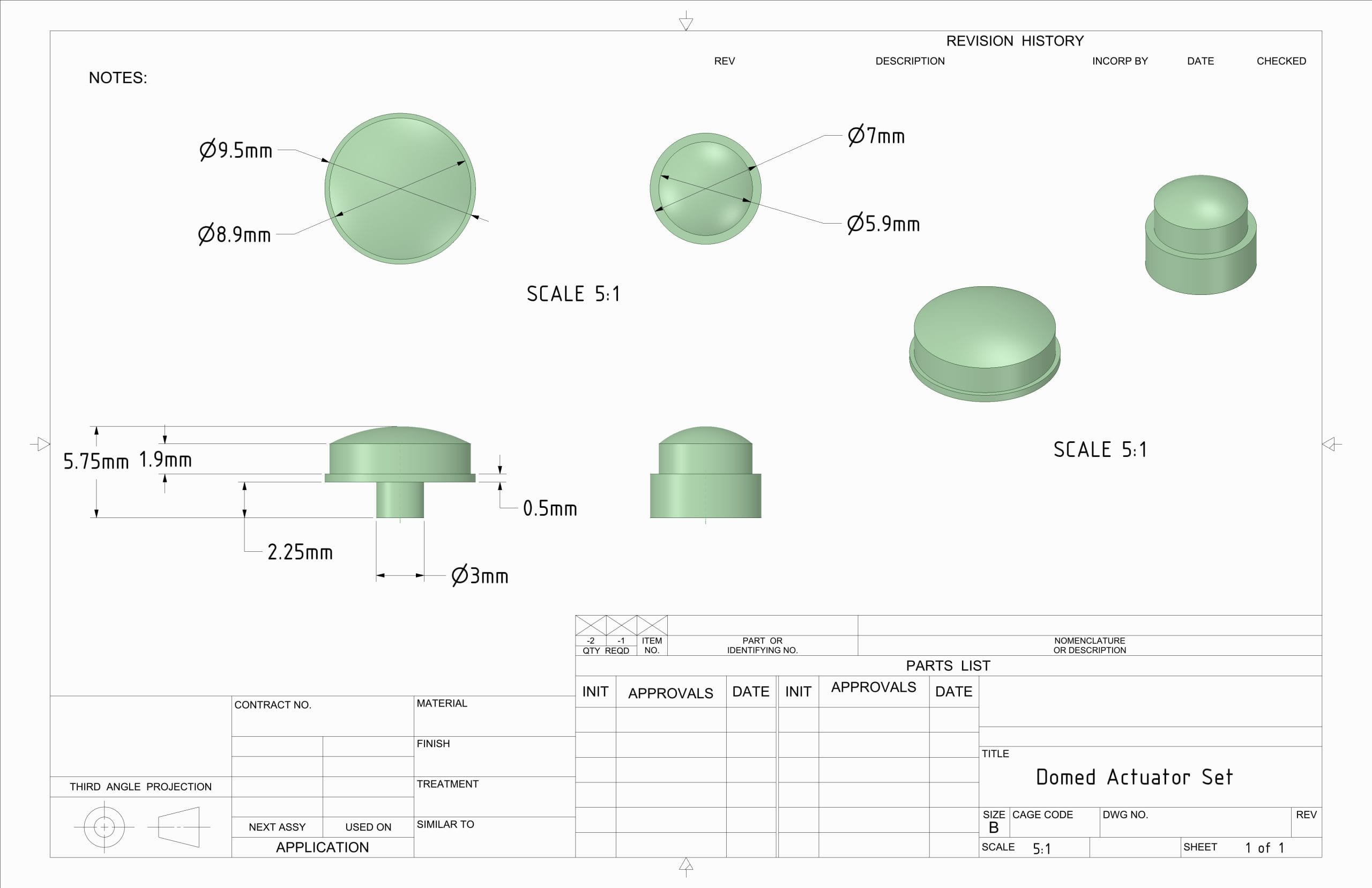

Please check the technical drawings below to understand the difference between sizes
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Actuator Set Style | 1.8mm – Recessed – Stainless Steel, 1.9mm – Flush – Stainless Steel, 1.9mm – Flush – Brass, 1.9mm – Flush – Acrylic, 1.9mm – Flush – Black Nylon, 2.4mm – Raised – Stainless Steel, 2.4mm – Raised – Brass, 2.4mm – Raised – Acrylic, 2.4mm – Raised – Black Nylon, 3mm – Acrylic, 3.5mm – Acrylic, Domed – Stainless Steel, Domed – Brass, Domed – Black Nylon |
