0.96″ Colour TFT Screen
£5.94 Inc VAT / £4.99 Excl VAT
These are not standard Evolv TFT screen and are used in *SOME* devices with an authentic Evolv DNA100C. They are slightly thinner and longer than Evolv 0.92″ colour screen.
They are also used with boards that have copied the Evolv DNA board footprint and layout.

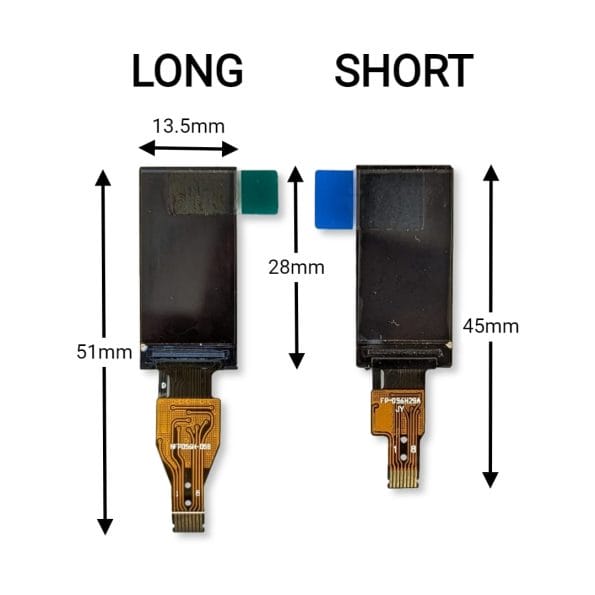

Two ribbon cable lengths are available. Please check which you have before ordering, although both should fit.

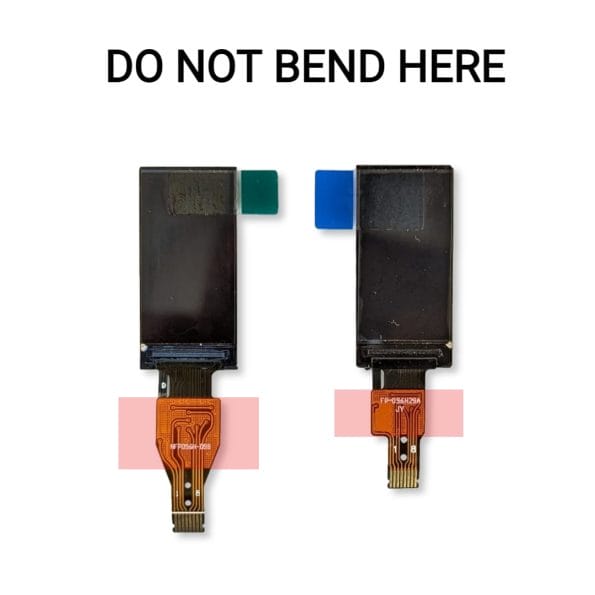

Do not bend the ribbon in the area shown in the product image
Lost Vape Thelema Solo DNA100C
Lost Vape Thelema Solo Gundam (Unknown tag colour read description)
Lost Vape Thelema Quest (Unknown tag colour read description)
Lost Vape Hyperion / Scutum DNA100C
If you’re buying this screen to replace the screen on a non DNA mod and you don’t know which tab colour you need it’s a guessing game
If using with an Evolv DNA board some configuration may be required in Escribe, please see the full description for more information and dimensions.
Screen settings in Escribe
Some screens need a different setting in escribe or certain colours can be reversed.
If your screen has a green tab choose variant 1
If your screen has a blue tab choose variant 2
You likely need to tick “The screen is flipped” too
| Weight | 0.010 kg |
|---|---|
| Dimensions | 4 × 2 × 1 cm |
| Ribbon length | Long, Short |
